AXIAL DUCTED FANS

---

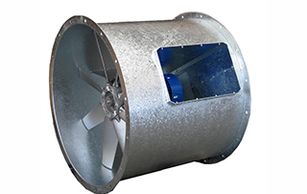

DUCT-M The fans of the DUCT- M series, are suitable when large air volumes are required with relatively low pressures, in duct mounted applications. The series is constituted by 13 sizes with impeller diameter from 310 up to 1250 mm. Download documen

DUCT-S The fans of the DUCT-S series are designed for large air capacities with low pressure, in applications duct mounted. The series is constituted by 8 sizes with impeller diameter from 300 up to 700 mm

DUCT-SO fans have been especially designed to attain the “wind” effect in TV and MOVIES studios or to blow sleeves or advertising balloons or else to create air curtains to protect people working in proximity of heat sources (ovens, incandescent surfaces, etc.).They may be dislocated and dragged anywhere since they are stood on a pedestal and oriented with different slants thanks to the fixing to the ventilation casing by means of hand wheels. The series is constituted by 8 sizes with impeller diameter from 310 up to 700 mm.

DUCT-BD series has been designed for all the applications where it is necessary to keep the motor outside the airflow, because of smoke, dusts and humidity. The maximum admitted temperature of the conveyed air is 60°C in continuous service. Performances correspond to the DUCT-M series with a reduction of 5% in capacity. The series is constituted by 7 sizes with impeller diameter from 500 up to 1000 mm.

DUCT-BFC  are used to exhaust large amounts of hot or dumpy or greasy smoke (up to 150°C), thanks to the position of the motor housed in aprotection hollow inside the fan casing.

DUCT SERIES ACCESSORIES
